RaceCore24 Simulation Technology


Simulation Controller Excellence





About
RaceCore24 is the cumulation of many years of experimentation, testing, design and development in order to deliver the highest performance racing simulator experience. We went from mickey mouse resolution on sensors to 23-bit and 31-bit. That combined with fast electronics gives us an edge over all other competitors. You want to win sim races? You need RaceCore24 products.

RaceCore24 is the collaberation, and team work of Tore Pedersen and Kjetil Kristoffer Solberg.
Current Project
We are currently working on improvements to our software and firmware. We are also working towards new products.

Customer Feedback

My wheel lockup was minimized. If you are trying to emulate a real F1 brake, this is how I imagined it would feel.

Shaun Cole

I was surprised how well you can control the brake. Transitions are smoother and more accurate.

Gerhard Lindauer
All of a sudded worrying about brake lockup is no longer an issue. It really does work.

John Hill

This mod is a game changer. My braking is so precise I can go deeper into corners. Lap times came down instantly.

Brian Dix

Products


Fanatec V3 Upgrade - Next Gen

Braking is the most important part of driving a race car. Later and more stable braking makes faster laptimes. The RaceCore24 advanced electronic and software upgrade will bring your brake to a new level of performance. Developed of racers for racers who expect nothing but the best. Our control and calibration software will make you racing minutes after installation. The new improved electronics will autoinstall without the need of any external drivers. Plug and play will almost be redefined.

$225 | Buy »


Software


 Ignition

Platform: Windows 10/11 Only
Version: 1.1.7.58

This software is used to adjust your brake mod electronics controller.

Information
This application allows you to:
  1. Calibrate your brake mod.
  2. Change firmware on you brake mod.
  3. Recover crashed firmware.
  4. Update to latest version.
  5. Download and install beta firmwares and beta Ignition software.
  6. Change firmwares programmable gain amplifier (PGA).
  7. Mute/Unmute sensor signal.
  8. Enable/Disable ABS brake pedal support in firmware.
  9. ... and more ...

Remember to update Ignition to latest version.

Warning
All software is built and tested for Windows 10/11 only. We take no responsibility for users trying to run the software on older versions of Windows.

Information
Install Ignition from the command line through winget:

winget install RaceCore24.Ignition

Free | Download

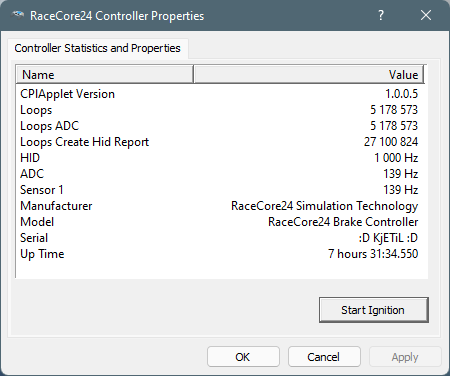

 Control Panel Applet

Platform: Windows 10/11 (x64) Only
Version: 1.0.0.5

This software is used to view statistics and other information on your RaceCore24 Simulation Technology controller.

Information
In order to view this application do:
  1. Install the software.
  2. Press Win + R (Run dialog).
  3. Enter joy.cpl and press Enter.
  4. Select the Brake mod USB device.
  5. Click the Properties button.

Now the CPlApplet dialog should appear. Enjoy.
NB! Remember to connect your brake mod.

Warning
All software is built and tested for Windows 10/11 only. We take no responsibility for users trying to run the software on older versions of Windows.
You will need the Microsoft Visual C++ Redistributable for Visual Studio 2022.

Free | Download

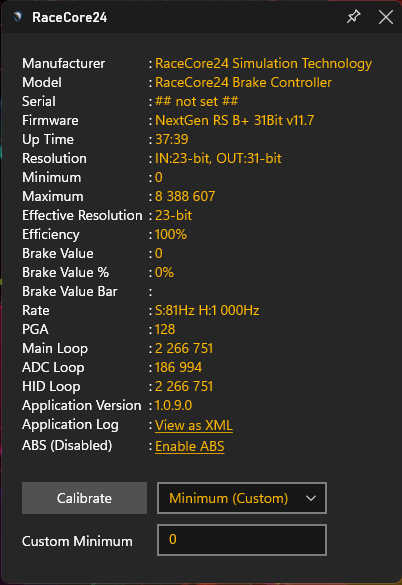

 Xbox Game Bar

Platform: Windows 10/11 (x64) Only
Version: 1.0.10.0

This software allows you to calibrate, enable/disable ABS braking, and view statistics etc. on your RaceCore24 Simulation Technology brake mod. You can also pin the app, and use it while gaming.

Information
This application comes in a zip file.
In order to install this application, unpack the .zip file and do:
  1. Install all .appx files first. No matter what order. If one fails continue with installation.
  2. Install the .msixbundle file last.
  3. Goto Settings->Privacy & security->File system and do:
    a) Make sure 'File system access' is on.
    b) Make sure 'Let apps access your file system' is on.
    c) Make sure 'RaceCore24.XboxGameBar' is on.

Application is now available on Windows through Xbox Game Bar (Win + G).
NB! Remember to connect your brake mod.

Warning
All software is built and tested for Windows 10/11 only. We take no responsibility for users trying to run the software on older versions of Windows.

Free | Download


Firmware


 RaceCore24 R&D

We now have an 8kHz, 23-bit sensor and an 8kHz HID rate running in our R&D laboratory.
The only upgrade now is changing our 23-bit ADC to a 31-bit ADC.
Seriously, it doesn't get any better than this.
We can't wait for testing real life gaming with this.
See the YouTube demostration below.

Warning
This is not a product yet. You cannot order this brake mod.
